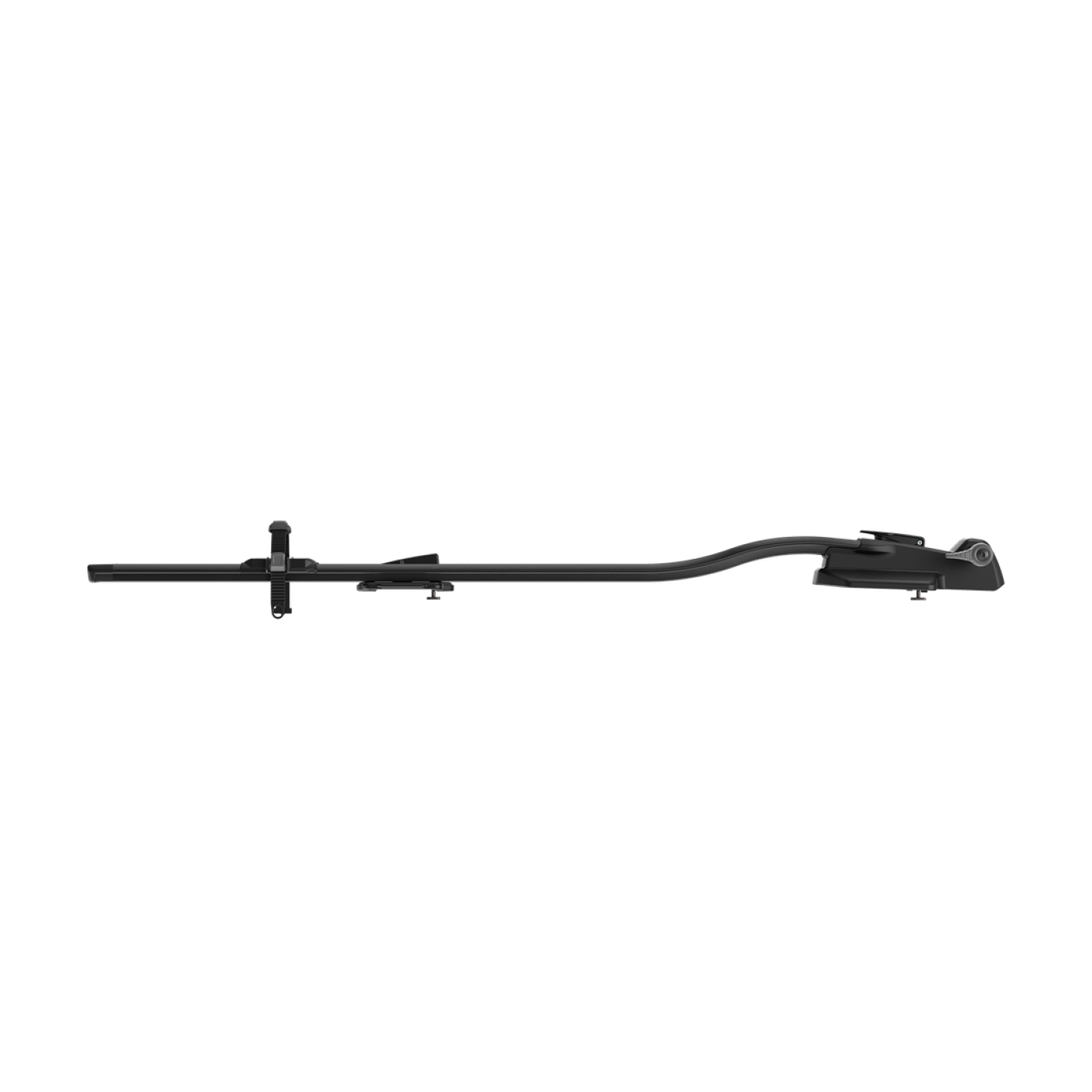

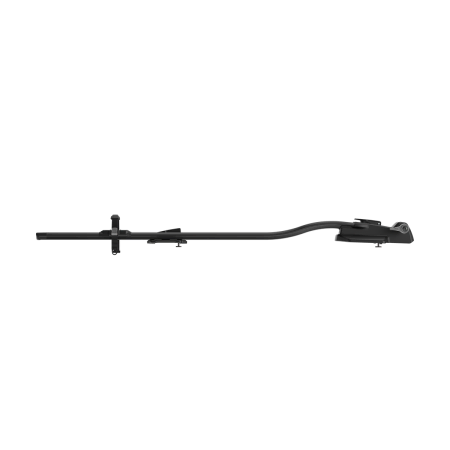

Low profile and easy to use

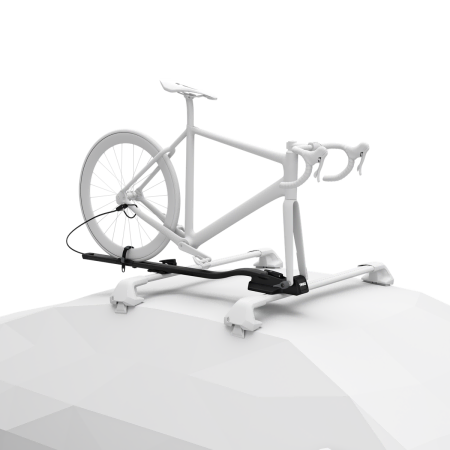

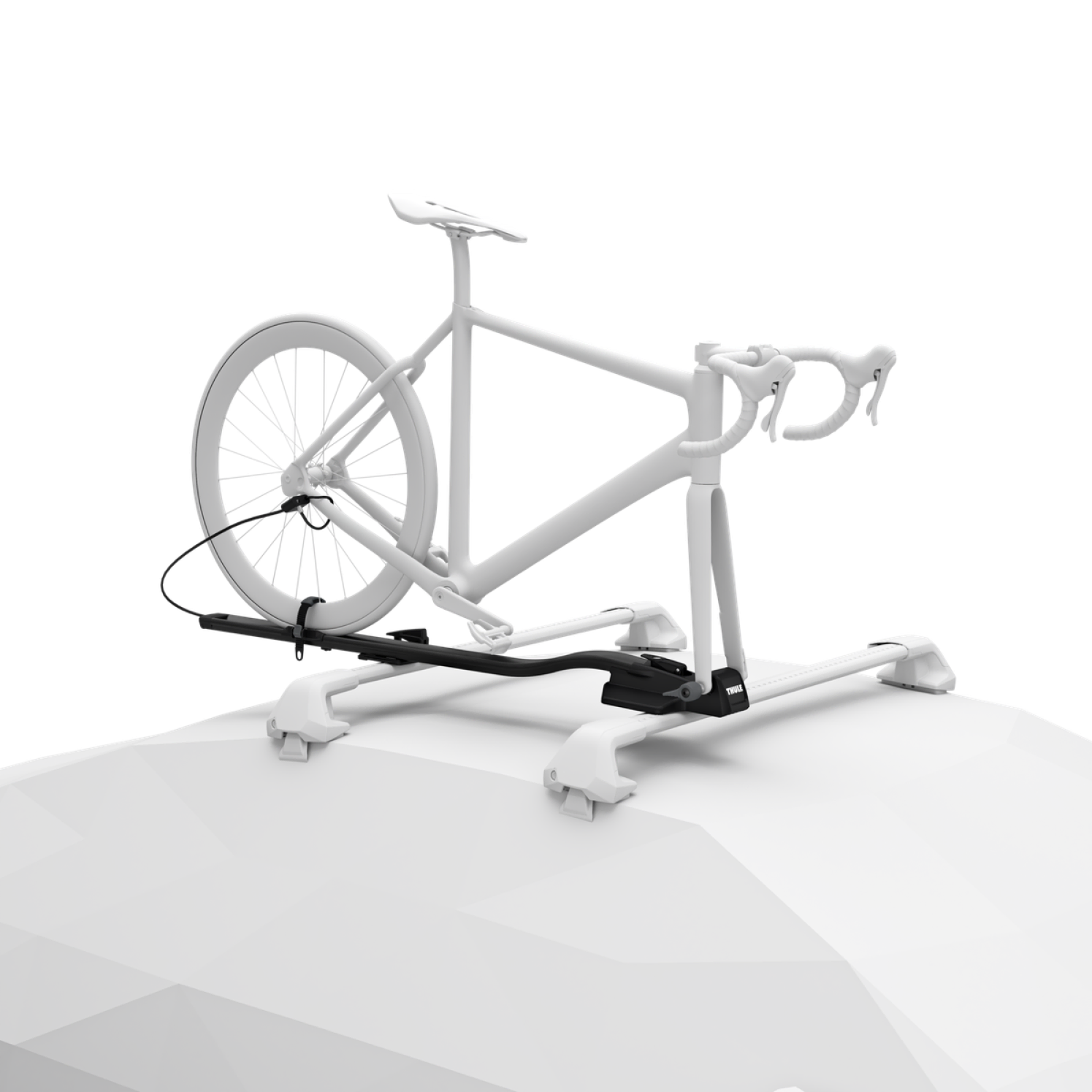

Mounting your bike is quick and easy

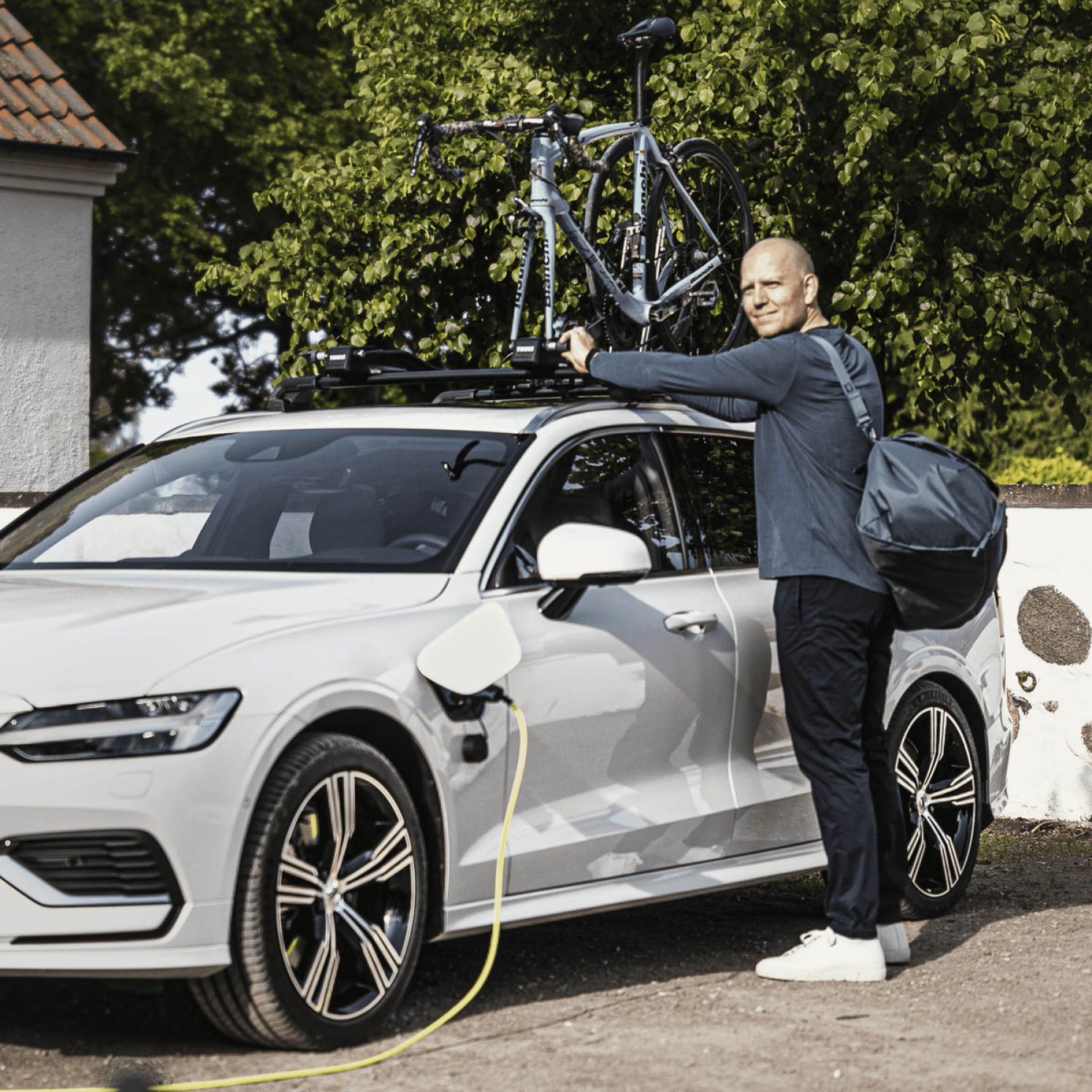

Solo loading made easy

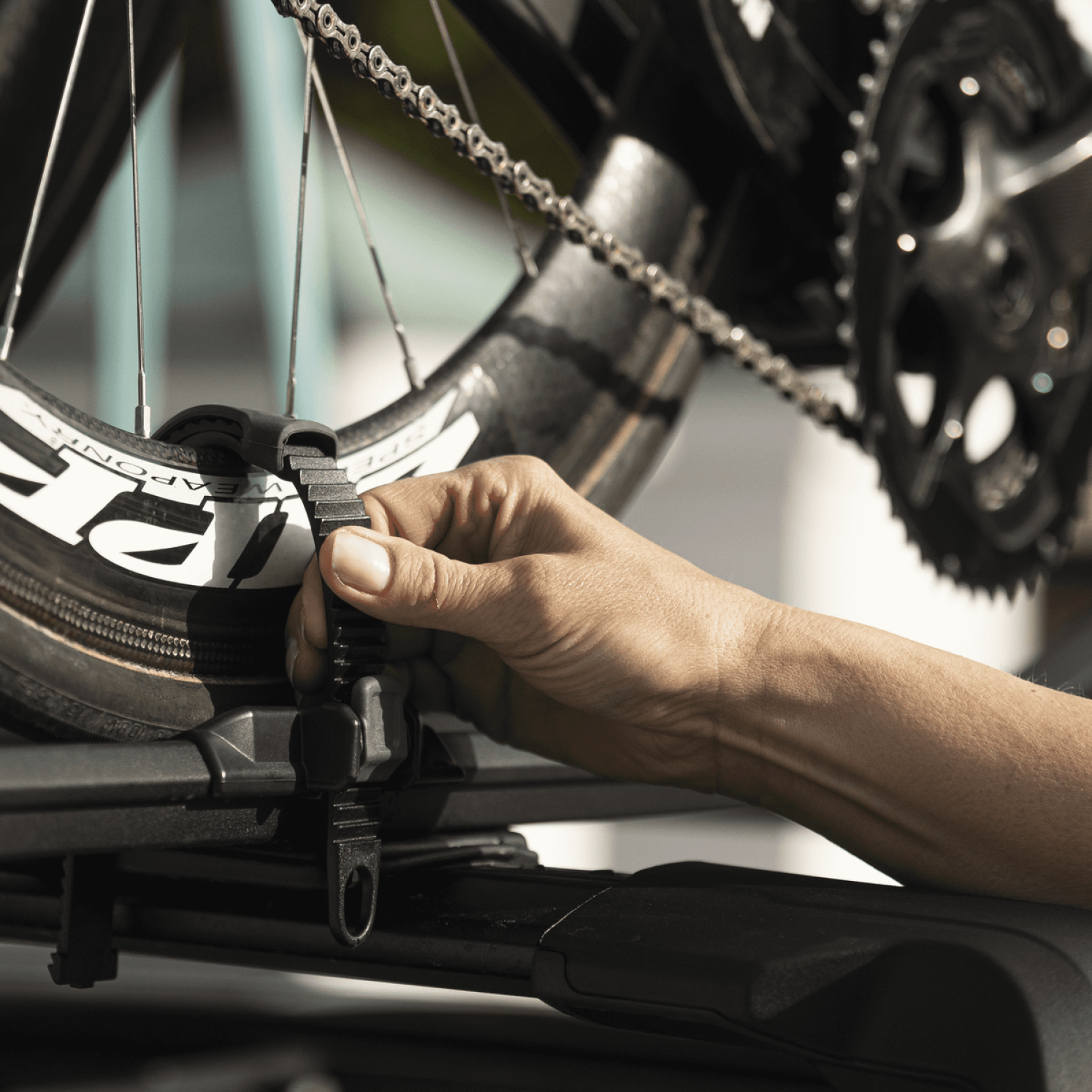

Rear wheel mounting strap
Thule FastRide
Nationwide Delivery
Free Click & Collect
Recommended Accessories
Thule FastRide & TopRide Around-the-bar Adapter
Thule FastRide & TopRide Thru-Axle Adapter 20x110 mm
Thule FastRide 9-15mm Axle Adapter Kit
Fork mounted roof rack bike carrier

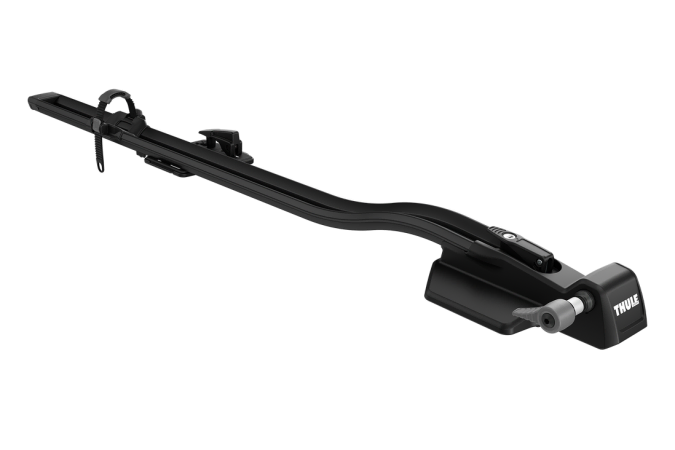

The Thule FastRide 564 is a fork-mounted bike carrier for roof racks, it is designed specifically for bikes with quick release wheels. They are easy to mount to your Thule roof bars and both quick and easy to secure a bike too as well. The bike is secured using the adjustable, protective wheel strap for the rear wheel along with a front fork mount that has both audible and visual confirmation so you can be confident that your bike has been secured effectively.
The Thule FastRide 564 has a max load capacity of 18 kg and is compatible with a wide range of quick-release bikes. The maximum wheelbase is 1250 mm with tyre width up to 3" and wheel diameters up to 29".
Thule's AcuTight Torque Limiter Knob System, which clicks when the optimal torque limit is reached provides safe and secure mounting. The Thule FastRide 564 mounts to all Thule roof rack systems, round bars and most factory vehicle manufacturer roof bar systems - additional adapters may be required.
Several Fastride carriers can be fitted to a roof rack, refer to the dimensions below and the width of your roof bars to work out how many. You should account for pedal crank space too. Most roof racks can take 3-4 FastRides, you also need to keep an eye on the accumulated total weight of the bikes and be sure it is within the max for your rack and car roof load.
Features
- Easily mount standard Quick-release bikes (9 mm)
- Additional adapters are available for other size axles: Thru-axle bikes (9-15 mm) and 20 x 110 mm Thru-axle bikes
- Accommodates bikes with disc brakes
- Safe mounting of Quick-release bikes thanks to Thule AcuTight torque limiter knob that click when optimal torque is reached
- Convenient and easy installation of fork adapter for a secure bike fit
- The fork mount rack is easy and safe to mount thanks to audible and visual confirmation of correct mounting
- Locks the bike to the bike rack and the bike rack to the roof racks
- Easy to switch carrier position from one side of your car to the other
- Adjustable protective wheel strap holds the rear wheel securely in place
- Mounts to all Thule rack systems, round bars and most factory racks
- Supplied with 20x20mm T-Track Mounts compatible with all Thule T-Track Bar
Specifications
- Load capacity: 18 kg
- Dimensions: 135 × 22 × 9.2 cm
- Weight: 3.3 kg
- Fits round frame dimensions: All
- Fits maximum oval frame dimensions: All
- Max tyre width: 3"
- Max wheel size (diameter): 29"
- Max wheelbase: 1250 mm
- Fits Thule WingBar Edge: ✓
- Fits Thule WingBar Evo: ✓
- Fits Thule SquareBar: FastRide Around-the-bar Adapter required
- Fits Thule SlideBar: ✓
- Fits Thule ProBar: ✓
- Fits Roof Racks with 20x20 mm T-tracks: ✓
- Fits Roof Racks with 24x30 mm T-tracks: Adapter Required: T-track Adapter 889-3
- One Key System Compatible: ✓
- Thru-axle compatible: Thule FastRide & TopRide Thru-Axle Adapter 20 × 110 mm, Thule FastRide 9-15 mm Axle Adapter Kit Required
- Carbon frame compatible: ✓
- Carbon fork dropout compatible: ✓
- Model number: 564001
