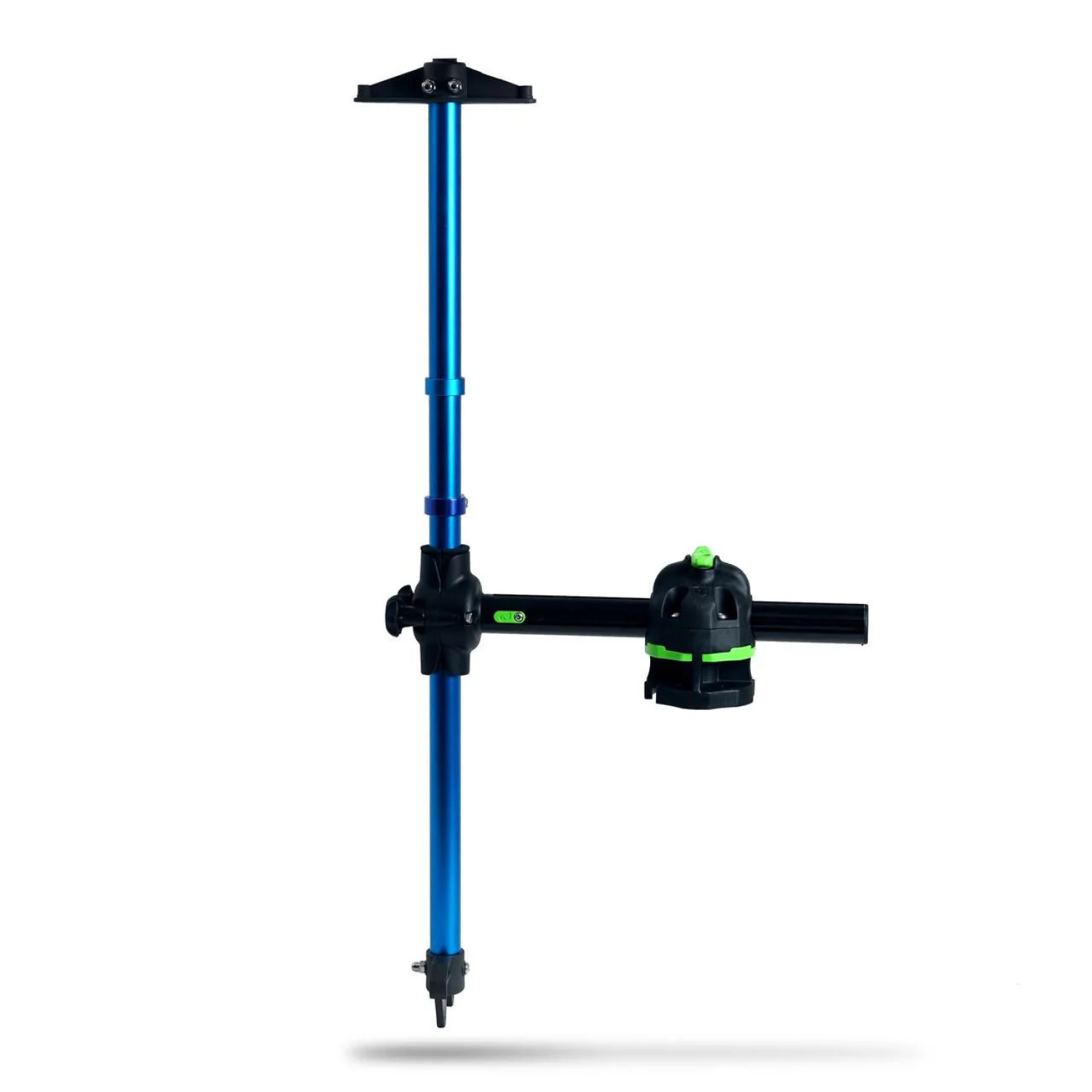

Bixpy RailBlaza Universal Hexx Adapter

Bixpy RailBlaza Universal Hexx Adapter

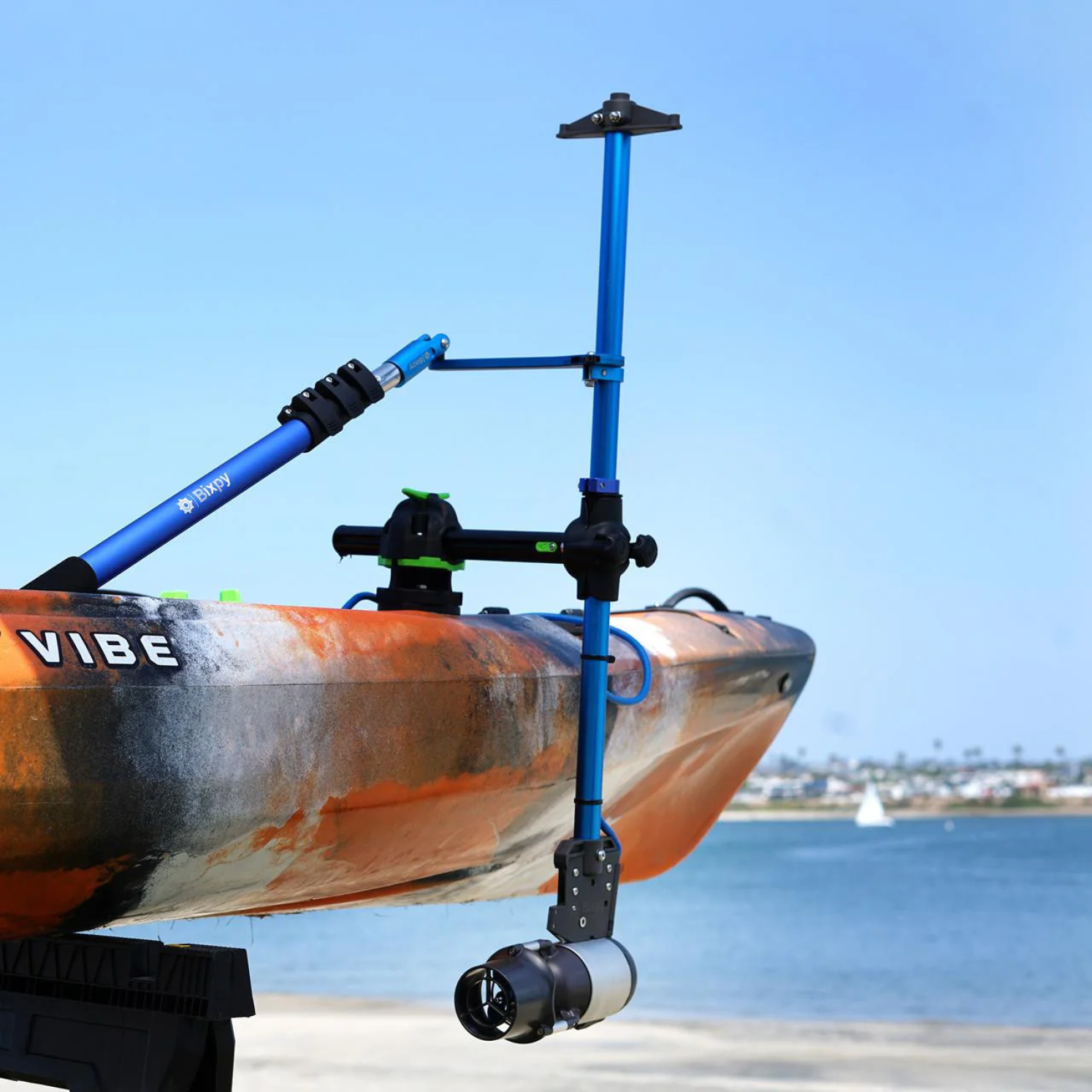

A Bixpy K-1 Motor fitted to a RailBlaza Universal Hexx Adapter

A Bixpy K-1 Motor fitted to a RailBlaza Universal Hexx Adapter

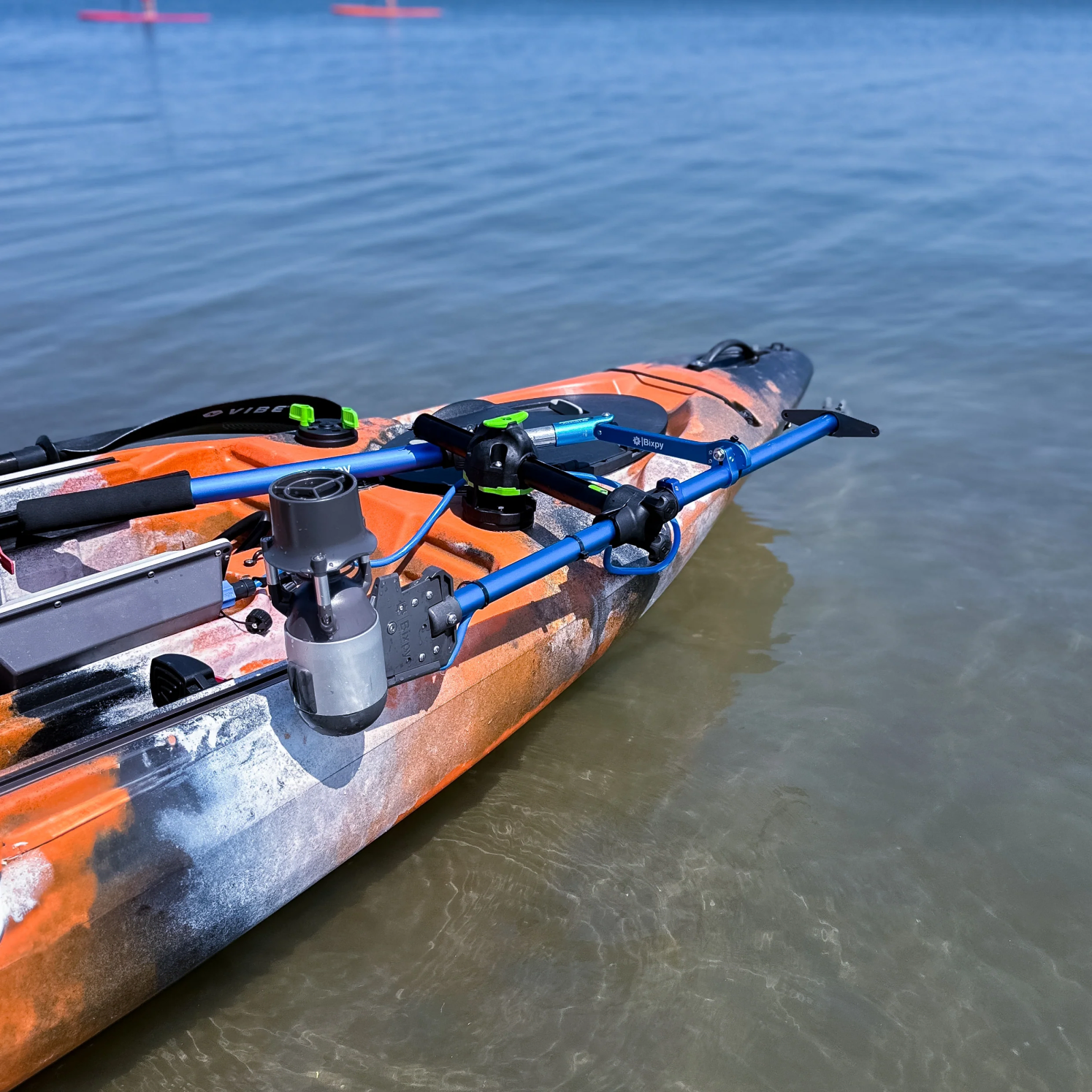

Bixpy K-1 Motor raised position - RailBlaza Universal Hexx Adapter

Easily raise and power your Bixpy motor on the Railblaza Hexx Adapter

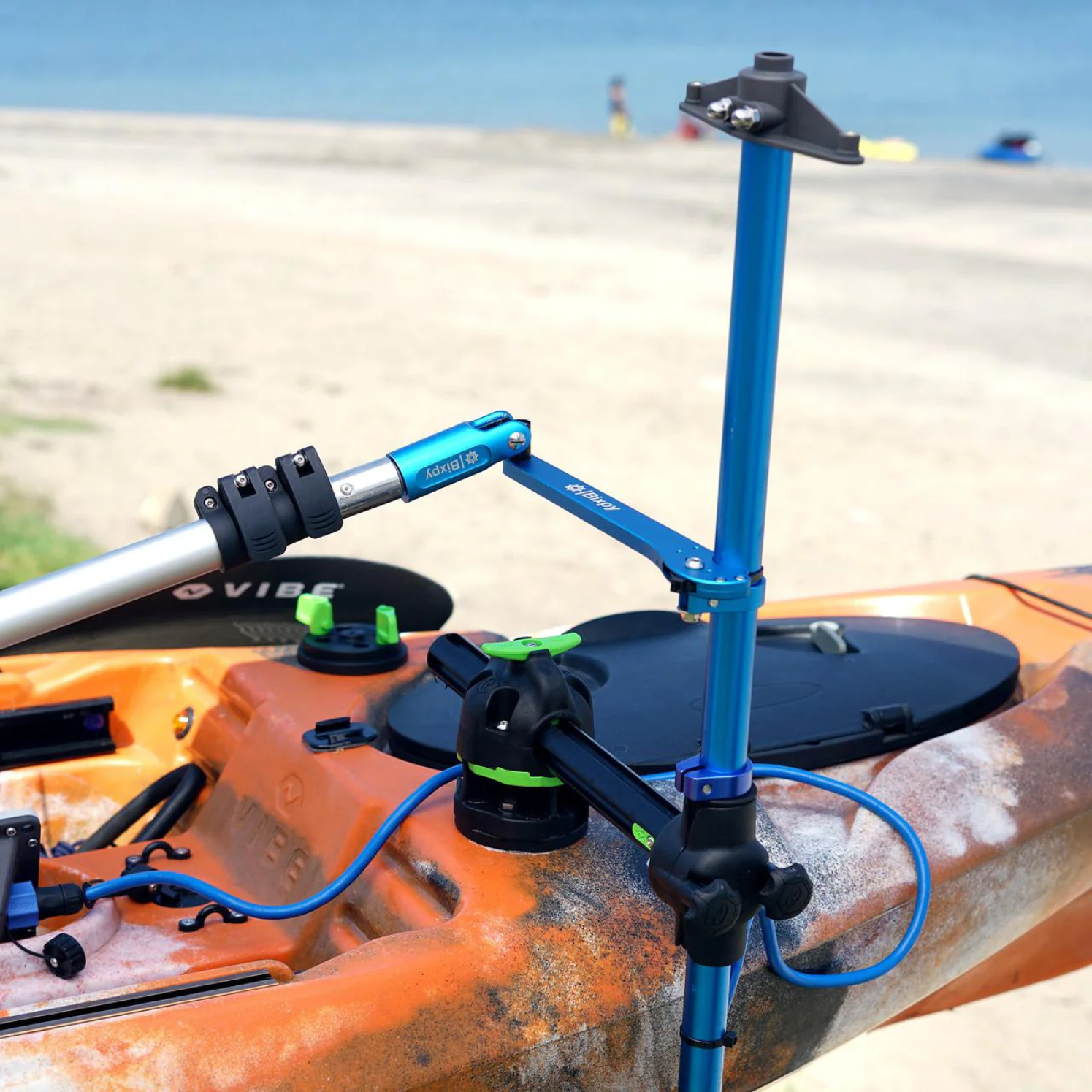

RailBlaza Universal Hexx Adapter with Pole Steering

Add the Pole Steering System to steer the RailBlaza Universal Hexx Adapter

Bixpy RailBlaza Universal Hexx Adapter
Video of Bixpy Railblaza Hexx Universal Adapter
Feature video of the Railblaza Hexx Adapter
A Bixpy K-1 Motor fitted to a RailBlaza Universal Hexx Adapter
Bixpy K-1 Motor raised position - RailBlaza Universal Hexx Adapter
RailBlaza Universal Hexx Adapter with Pole Steering

Bixpy RailBlaza Universal Hexx Adapter

Nationwide Delivery Avilable For The Bixpy RailBlaza Universal Hexx Adapter Nationwide Delivery
UK Delivery available for the Bixpy RailBlaza Universal Hexx Adapter.

Collection From Store Available For The Bixpy RailBlaza Universal Hexx Adapter Free Click & Collect
Buy online, collect in-store, See Details.

Recommended Accessories

Bixpy Pole Steering with Extendable Handle

Bixpy Pole Steering with Telescopic Handle

£125.95
£139.95
View Details
Bixpy Tiller Steering Handle

Bixpy Tiller Steering Handle

£89.95
£99.95
View Details

Universal Kayak Adapter for Bixpy Motors

A neat solution for installing a Bixpy motor to almost any kayak. Utilising a Railblaza Hexx base mount, you can fit this adapter to kayak slide tracks or any 3 inch / 8 cm circle of flat space on the deck. Installation hardware is included for both track or deck fitting. This mount can be installed as both a permanent or removable set up, with hardware provided for both options, with just a low-profile base mount fitted to the kayak.

Once the Hexx mount is installed, you simply slide in the motor shaft to complete the mount. The shaft can be set either fixed, or set to be steerable by adding on either the Pole Steering or Tiller Steering systems (sold separately), with height adjustment to get the motor working at its optimum in the water. The Hexx mount allows you to easily raise and lower the motor from the water using a quick-release tab. The horizontal stowed position is useful for when you don't need to use the motor and reduce drag in the water, as well as for launching and landing.

A great option for kayaks that don't have a dedicated adapter or have another easy way to add a Bixpy motor.

Features

  • RailBlaza® Hexx mount offers removable and permanent installation options.
  • Quick-release tab for lifting and stowing the motor.
  • An excellent adapter option for narrow kayaks or bow mounting your Bixpy motor.
  • Quick and easy installation on T-tracks. (Use only on embedded T-Tracks for better support.)
  • Sturdy surface mounting option for a more rugged setup.
  • Protection: Waterproof, dirt-proof, and corrosion-resistant housing and components.
  • Water use: Marine-grade stainless steel, aluminum, and plastic components are suitable for use with both saltwater and freshwater.

What's Included

  • RailBlaza® Hexx mount and mounting plate.
  • All nuts and bolts for both permanent and removable installations.
  • Hardware to mount in T-Tracks.
  • Hardware to surface mount.
  • Bixpy Motor shaft.
  • Height adjustment clip.
  • Steering clip for Pole or Tiller steering installation.
  • Zip ties for securing motor cable.
  • Motor mounting hardware for both permanent and removable installations.

Specifications

  • Vertical Pipe Length: 30.2" (76.71 cm).
  • Horizontal Pipe Length: 15.0" (38.1 cm).
  • Hex Mount Diameter: 3.5" (8.89 cm).
  • Weight: 2.65 lb (1.2 kg).
