Bixpy Universal Rudder Adaptor

Bixpy Rudder Mount

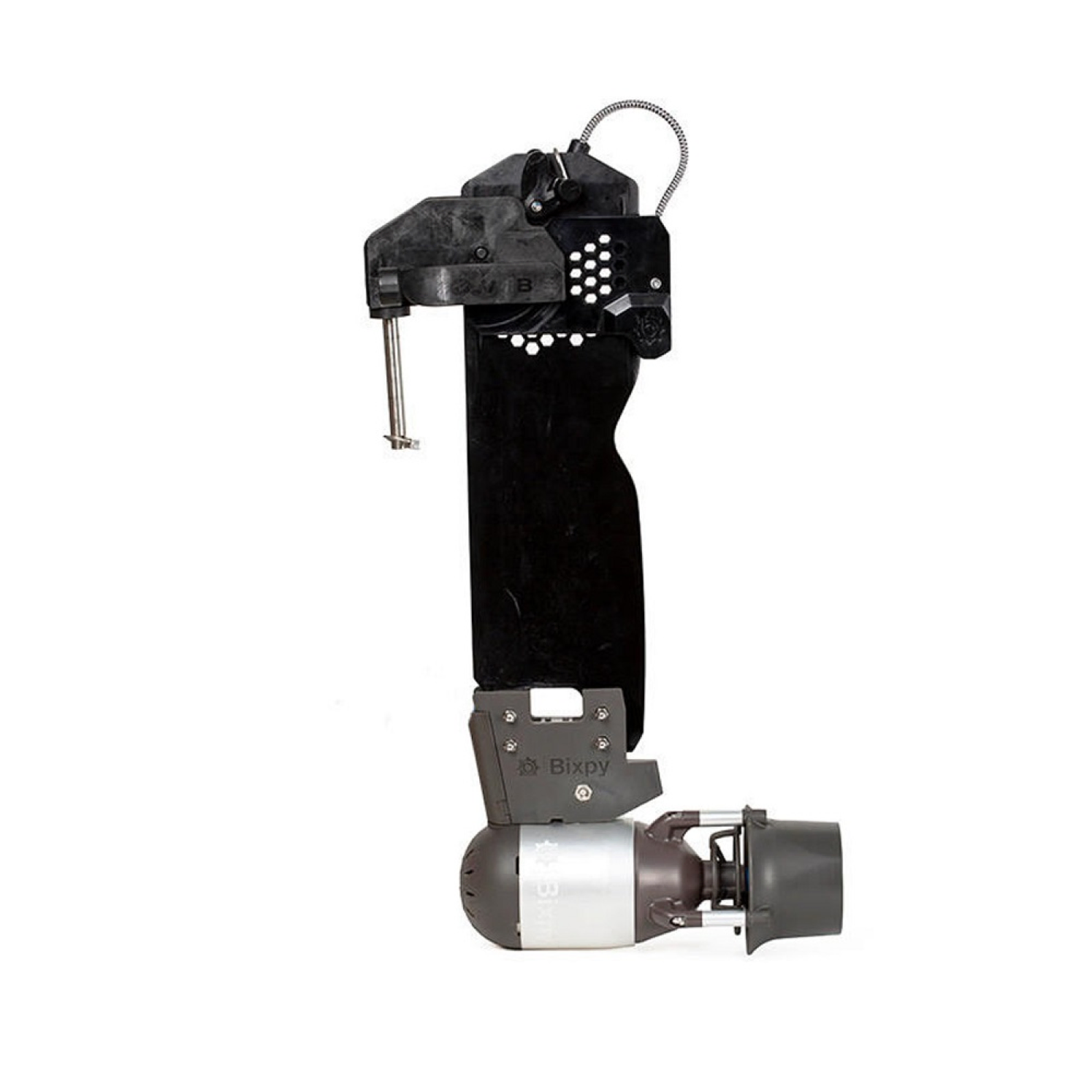

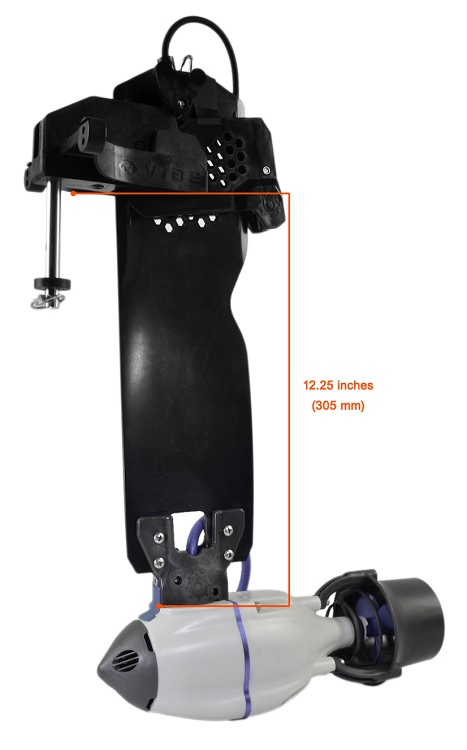

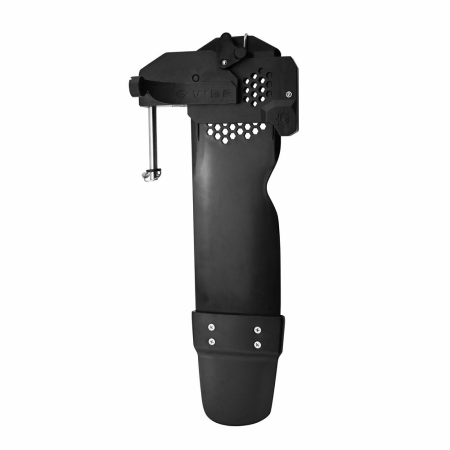

The Bixpy-Ready Gravity Rudder (made by Vibe Kayaks) is the first rudder that is specifically designed to accept a Bixpy motor. An end cap unbolts from the rudder blade, revealing a mounting position for the Bixpy K-1 or J-2 Motor. The rudder has a 10mm rudder pin which is the standard across almost all kayak manufacturers, meaning that this adaptor can be used with almost all kayaks with an existing rudder and also rudder-ready kayaks! This adaptor includes the Vibe Bixpy-Ready Gravity Rudder, Bixpy Clam Cleat and Pull-Up Rope.

The Gravity rudder features a robust double hinged, 90° Slide & Stow mechanism allowing you to completely haul the rudder and motor out of the water for launching and landing. Steering is achieved using the existing rudder foot controls on your kayak. Please Note: If your kayak does not already have a rudder installed, then foot steering controls or hand steering controls may be required as an additional purchase if your kayak does not have sliding or tip-toe footrests for rudder control.

Popular models, with a 10mm moulded-in rudder pin housing, that this adaptor will work include:

• Vibe Sea Ghost 110 and 130
• Vibe Yellowfin 120
• Perception Triumph 13
• Enigma Fishing Pro 10, 12 and 14
• 3 Waters Big Fish 105 and 120
• Feelfree Lure 10, 11.5 and 13.5, V1 and V2
• Feelfree Moken 10 V2
• Feelfree Moken 12.5 V1 and V2
• Seastream Angler 120 PD

This adaptor will also work with the following Viking Kayak models that have an existing Viking Rudder Kit with rudder bracket and tip-toe foot controls fitted:

• Viking Kayaks Profish Reload
• Viking Kayaks Profish 400
• Viking Kayaks Profish GT

This adaptor will also work with the following models with the addition of a Bixpy Simple Rudder Gudgeon (sold separately and additional hand or foot steering controls also required):

• Ocean Kayak Big Game II
• Ocean Kayak Prowler 13
• Ocean Kayak Trident 11, 13 and 15
• Ocean Kayak Ultra 4.1, 4.3 and 4.7
• Ocean Kayak Tetra 10 Angler and 12 Angler
• Wilderness Systems Tarpon 100 and 120

Check out the Bixpy Kayak Compatibility Chart to see if this kit will fit your kayak.
