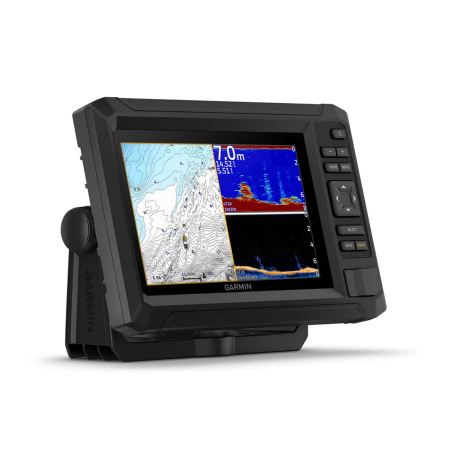

7in Screen Fish finder with built-in Navionics Charts for UK

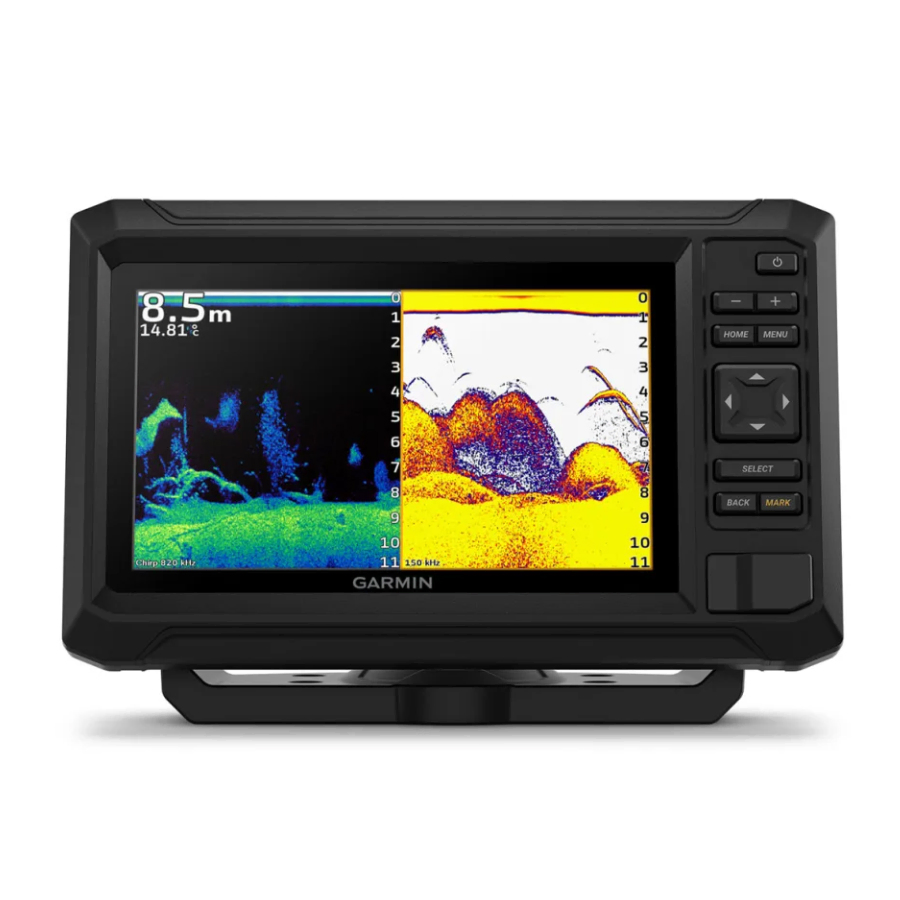

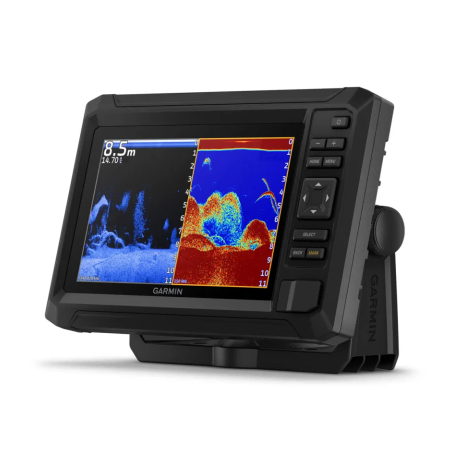

Enjoy crisp and clear views of the world beneath your craft with the Echomap UHD2 75cv fish finder from Garmin. The large and bright 7in screen shows a vivid high-contrast colour palette for easy viewing of sonar data displayed on the screen. Split-screen modes allow you to easily display sonar data alongside charts so you can get all the info in one place and without squinting your eyes to see it all! With the bright colour palette, fish shoals, larger individual fish and structure shows up better than ever so that you can cast your lure or drop your bait exactly where you need to. With the in-built GPS you can plot your favourite fishing marks, draw tracks and route to your chosen position. The unit also displays providing readings of speed and heading.

In-built Garmin Navionics+ charts for UK waters provide you with detailed contour charts, allowing you to locate the reefs, pinnacles, drop-off and banks to fish over. Built-in Wifi allows you to connect with the Garmin Active Captain App where you can upgrade your charts to the Navionics Vison+ for super detailed Relief Shading charts!

The Echomap UHD2 has a IPX7 rating making it great for use on boats and kayaks alike. The Echomap UHD2 range supports a number of Garmin transducers - see below for options.

Features

  • Bright 7in keyed display
  • High-contrast vivid colour palette for better viewing of targets on screen
  • Preloaded Garmin Navionics+ Charts
  • Optional upgrade to Garmin Navionics Vision+ charts via Active Captain App
  • Transducer support for Garmin traditional and ClearVU scanning sonars
  • Built-in Wi-Fi connectivity for Active Captain App
  • Wireless Networking with other compatible Echomap UHD2 models
  • IPX7 waterproof rating
  • Micro SD card slot - accepts data cards up to 32 GB maximum size
  • Typical Current Draw at 12VDC = 1A
  • Max Current Draw at 12VDC = 1.5A

What's Included

  • ECHOMAP UHD2 75cv Unit
  • Power/data cable
  • 8-pin to 4-pin transducer adapter cable
  • Bail mount
  • Flush mount
  • Hardware
  • Documentation

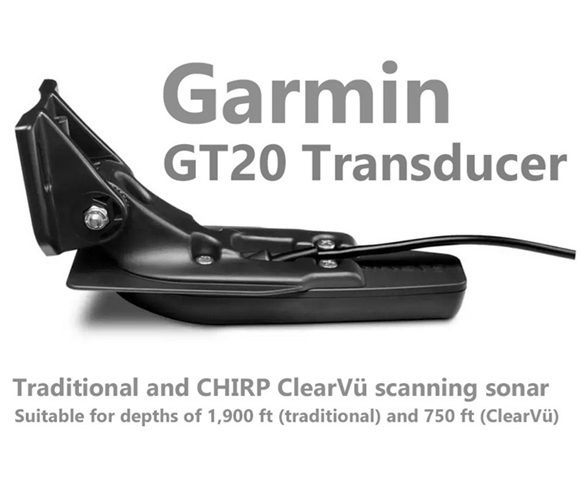

Garmin GT20 Transducer

Providing traditional sonar (up to 1900ft depth) and detailed CHIRP ClearVu sonar (up to 750ft depth). Great for coastal and lake use for displaying fish arches and clear images of structure and underwater objects. Operating frequency of 77/200 kHz (traditional) and 455/800 kHz (ClearVü). Can be transom mounted or trolling motor mounted.

Garmin GT20 Transducer



Garmin GT24 Transducer

 Providing High-wide CHIRP traditional sonar (up to 800ft depth) and Ultra-HD ClearVu sonar (up to 200ft depth). Great for shallower coastal and lake use for displaying incredibly clear high resolution images of fish, structure and underwater objects. Operating frequency of 150-240 kHz (HW-CHIRP) and 760/880 kHz (UHD ClearVü). Can be transom mounted or trolling motor mounted.

Garmin GT24 Transducer
