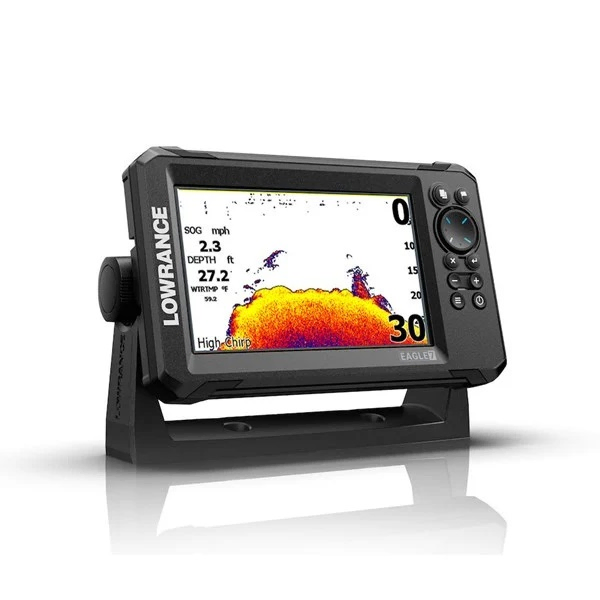

Lowrance Eagle 7 Fish Finder - The display shows the CHIRP sonar mode
The Eagle 7 fish finder from Lowrance features a 7in colour screen to clearly display fish finder and chartplotter modes (shown on the screen)
Choose the Tripleshot transducer option to get Side Scanning Sonar on your Eagle 7 fish finder

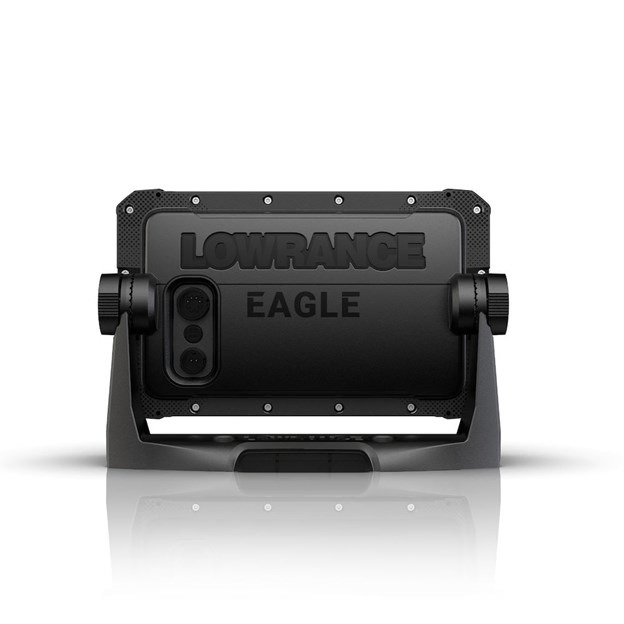

Twist-Lock connectors on the rear of the Lowrance Eagle 7 ensure easy installation and removal of transducer and power leads from the unit.
Lowrance Eagle 7 Fish Finder
Nationwide Delivery
Free Click & Collect
Recommended Accessories
Railblaza Fish Finder Mount R-Lock R
Ram Mounts 1.5in Universal Electronics Mount
12V Rechargeable Fish Finder Battery
BerleyPro Visor for Lowrance Eagle
Fish Finder with Chartplotter
Take your fishing to the next level with the Eagle 7 from Lowrance. A comprehensive fish finder and chartplotter offering you the tools to see the world beneath your kayak or boat, so you can fish with more effectiveness. Choose from two transducer types - the HDI transducer for clear sonar readings below your craft, or the Tripleshot HD transducer for additional side scanning sonar for views either side of your craft too. Fish Reveal technology takes both CHIRP and Downscan Imaging readings and combines these into an easy to interpret view on the screen. This is an easy to use device that suits those looking for their first fish finder to help them catch more fish.
The 7in full colour backlit screen offers plenty of space to display your fish finder readings beside the chart mode, giving you all the data you need right in front of you. The IPS screen offers excellent viewability from all angles, even when wearing polarised glasses. These are a vast improvement over older LCD displays that would be tricky to view in some scenarios.

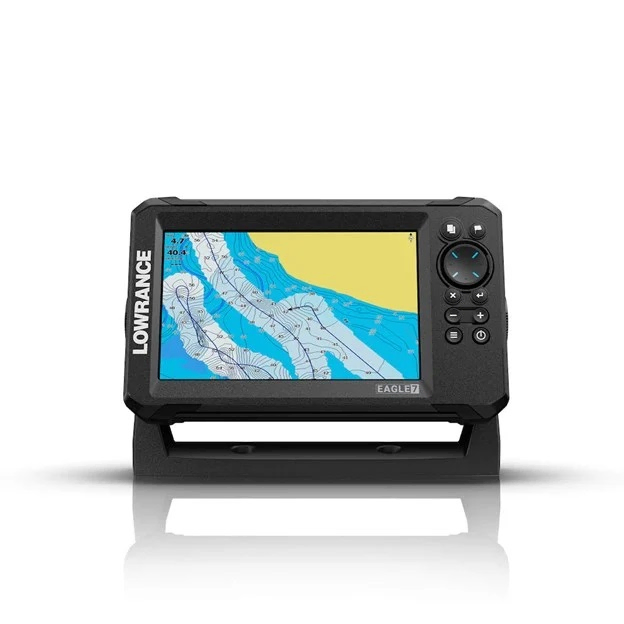

The Eagle 7 features a full GPS chartplotter mode. This allows you to plot marks, draw tracks and create routes so that you can navigate to and from your favourite fishing spots more easily. Navigate to and from your launch spot with ease, and clearly see your vessel speed and heading too. Pre-loaded with a basic worldwide basemap, you can add high detail contour charts by plugging in a Navionics+ Chart Card to the micro SD card slot found on the side of the unit. Alternatively, make use of the Genesis Live feature, where you can create custom ½-foot contour maps as you navigate the water - this draws a map of everywhere your vessel has been allowing to build up your own charts from the sonar readings.
Twist-Lock connectors on the rear of the Lowrance Eagle 7 ensure easy installation and removal of transducer and power leads from the unit. The supplied adjustable base mount can be installed to any flat surface that has sufficient space, or choose an aftermarket Railblaza or Ram Mount with further track and rail mounting options available.
Need a visor for your fish finder? Reduce sun glare and spray build-up with a screen visor! We sell the BerleyPro Visor for the Lowrance Eagle 7 Fish Finder? - Click Here to find out more.

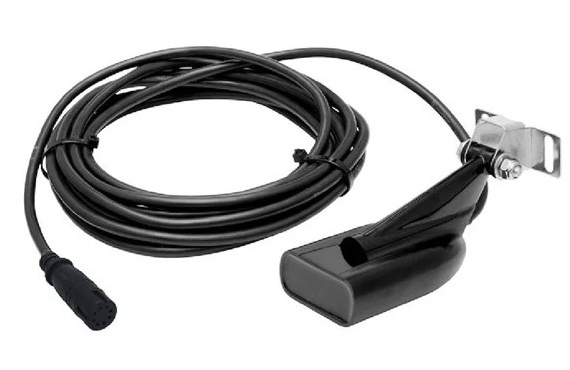

Lowrance 83/200 HDI Transducer
Choose the Lowrance 83/200 Hybrid Dual Imaging (HDI) transducer to get med-high CHIRP sonar and Downscan Imaging. CHIRP sonar is great for showing any fish in the water column below you. Downscan Imaging offers high resolution scanning to show the the bottom structure in excellent detail. Together you can find those shoals of fish, or fish-holding structure more easily! This is our most popular transducer option for kayak anglers fishing coastal waters.

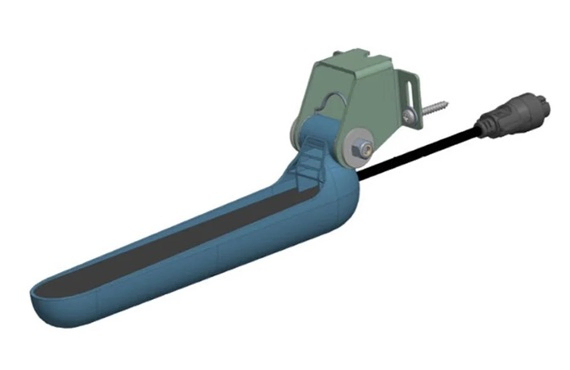

Lowrance Tripleshot HD Transducer
Providing CHIRP sonar, Downscan Imaging and Side Scanning Sonar all in one transducer! Side Scan allows you to see either side of your craft, perfect for spotting those bait shoals or fish holding structures around you. Side Scan works best in shallower lakes, estuaries and coastal areas, with diminishing effectiveness as the depth increases. Please Note: Side Scan Transducers must be mounted in contact with the water and below the keel line of your craft so that the sonar can can shoot either side of the hull.

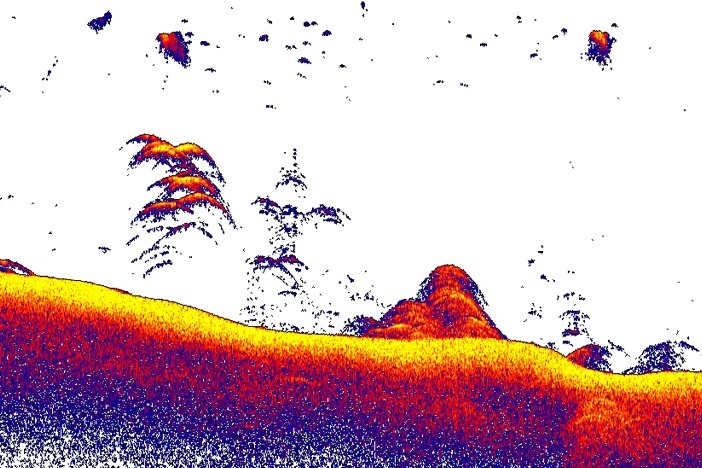

CHIRP Sonar
CHIRP sonar provides high resolution views of fish and other objects within the water column. Great for showing shoals of fish and individual larger fish!

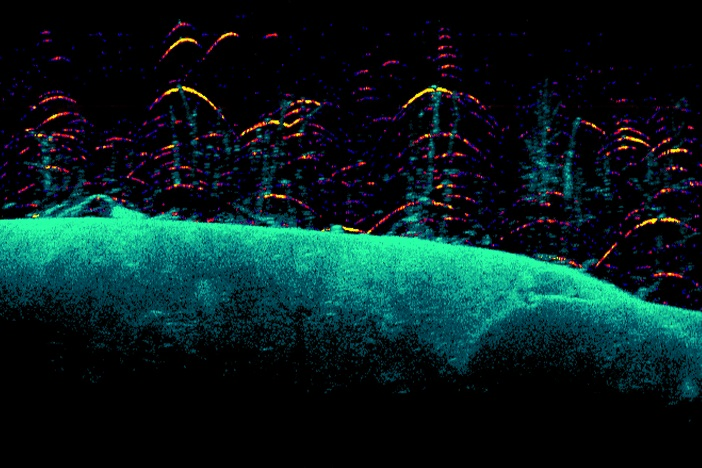

Downscan Imaging
Downscan Imaging uses high frequency pulses of sonar to show high resolution detail of the sea/lake bed and other structures. Great for feature finding!

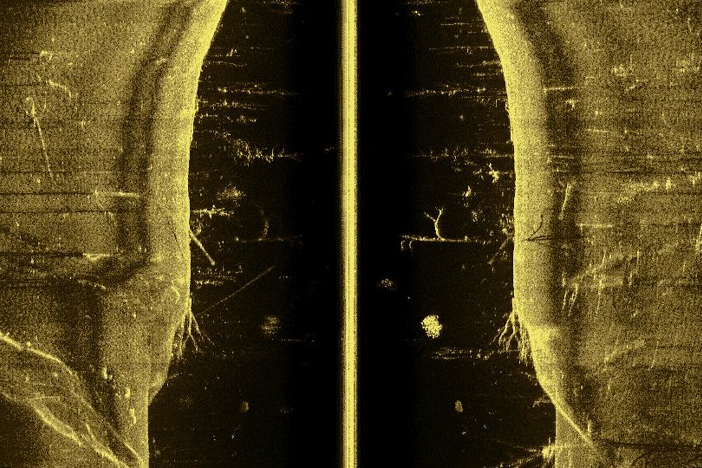

Side Scan Imaging
Only available with the Tripleshot HD Transducer. Side Scan makes it easier to locate fish holding structure either side of your craft so that you can find those fish even faster! Scan Scan can work up to 600ft either side of your vessel.
Features
- Choose from 83/200 HDI MED/HIGH Transducer or Tripleshot HD Transducer options
- Autotuning Sonar
- FishReveal technology for easier interpretation of sonar readings
- 7in colour IPS Screen - viewable from all angles even with polarised glasses
- Increase contrast and viewability with all-new color palettes
- Worldwide Basemap
- Micro SD Card Slot
- Twist-Lock Connectors
- Typical Power Consumption: 550 mA @ 12 V DC with backlight on full
- Waterproof Rating: IPX7 with card door closed
- One-Year Warranty
What's Included
- Eagle 7 Unit
- Eagle Quick Release Bracket
- 83/200 HDI Transducer & Power Cable
- Transducer Transom Bracket
- Fuse & Fuse Holder
- Instructions
