Palm Orbit Spraydeck
Palm Orbit Spray Deck
Nationwide Delivery
Free Click & Collect
Rand Seal Performance Spraydeck

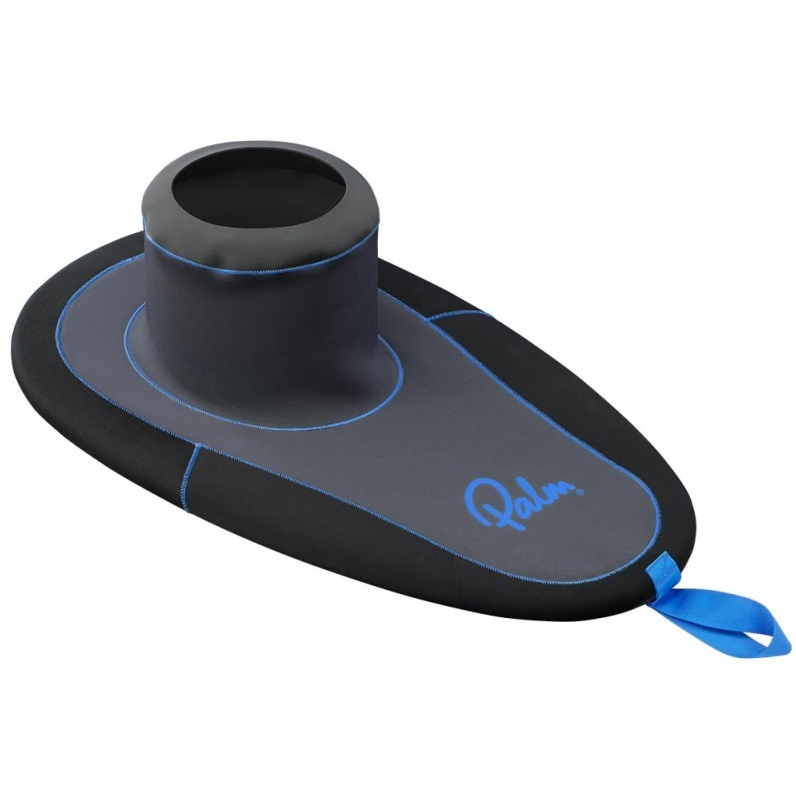

The Orbit deck from Palm features a rand deck for a super secure fit to your cockpit. This deck has been designed specifically for those huge white water sessions when the drops hit hard and a secure deck is needed. The implosion proof centre section helps to soak up the impact from a hit, whilst the 11mm rand seal and sticky Gripsil underside keep your cockpit attached firmly to your kayak. This deck is only for those confident at removing the tight fitting rand deck!
The deck features KNytex reinforcement to protect against abrasion on the rim. An extended body tube with sealess O-Ring seal keeps the body tube in place exactly where you want it.
A feature loaded deck for the serious white water paddler!
Features
- 4 mm small diamond CR Neoprene deck
- KNytex and Powertex CR Neoprene Rim
- Jersey and mesh CR Neoprene waist with O-ring seal
- Glued and Blind stitched seams
- 11mm 70 IRHD rubber rand triple glued to the deck
- Sticky Gripsil underneath
- 3D deck shape
- 38 mm webbing release loop with attachment clip
- Weight: 1005g (R4 M/L)
Size Guide - Palm Neoprene Spraydecks
| Deck Size | Common name | Cockpit circumference (cm) | Cockpit length (cm) | Cockpit width (cm) | Cockpit circumference (in) | Cockpit length (in) | Cockpit width (in) | Examples |
| R2 | Extra Small | 177 – 192 | 66 – 75 | 40 – 44 | 70 – 75 | 26 – 29 | 16 – 17 | Dagger Axiom 6.9 |
| R3 | Small | 192 – 207 | 75 – 83 | 44 – 47 | 75 – 81 | 29 – 32 | 17 – 18 | Slalom kayaks and some older sea kayaks |
| R4 | Keyhole | 207 – 217 | 83 – 89 | 47 – 50 | 81 – 85 | 32 – 35 | 18 – 19 | Dagger whitewater kayaks and some sea kayaks |
| R5 | Big Deck | 217 – 227 | 89 – 95 | 50 – 53 | 85 – 89 | 35 – 37 | 19 – 21 | Dagger Katana; Pyranha, Waka, Zet or Spade whitewater kayaks; and most sea kayaks |
| R6 | Super Big | 227 – 237 | 95 – 101 | 53 – 56 | 89 – 93 | 37 – 40 | 21 – 22 | Dagger Axis E |
| Waist Size | Waist (cm) | Waist (in) |
| XXS | 64 – 72 | 25 – 28 |
| XS/S | 72 – 80 | 28 – 31 |
| M/L | 80 – 96 | 31 – 38 |
| XL/XXL | 96 – 112 | 38 – 44 |
| Adjustable (Touring Decks) | 60 – 127 | 24 – 50 |
Notes on Spray Deck Fitment
You may want to choose a deck size larger than suggested here, especially if your kayak sits at the top end of the recommended size. Different kayak brands have different styles of cockpit. Wide short cockpits may fit the same size of spraydeck as a long narrow cockpit. Use the largest dimension to determine which spraydeck to purchase.
A simple shock cord neoprene deck (like the Palm Sport and Palm Loweswater) will stretch more easily and be easier to put on than a reinforced deck (like the Palm Roanoke, Enduro & Impact) that have panels of KNytex, Gripsil or other protective materials. You may wish to go up a size in a reinforced deck to make this easier to put on, or stick with the recommended size for a tight and snug fit (best for keeping the water out!).
Neoprene spray decks are often easier to put on when it's wet. If you are finding your new deck is a tight fit, try wetting the neoprene to allow more stretch. If your neoprene spraydeck is hard to put on when you first buy it, put it over the cockpit of your kayak and leave it for a few days to help with the stretch. Over time, a neoprene spraydeck will stretch with use, becoming easier to put on your cockpit.
