Garmin Echomap UHD2 75sv Fish Finder
Recommended Accessories
Ram Mounts 1.5in Universal Electronics Mount
12V Rechargeable Fish Finder Battery
Nocqua Lithium Pro Power Kit 12V
BerleyPro Visor for Garmin Echomap

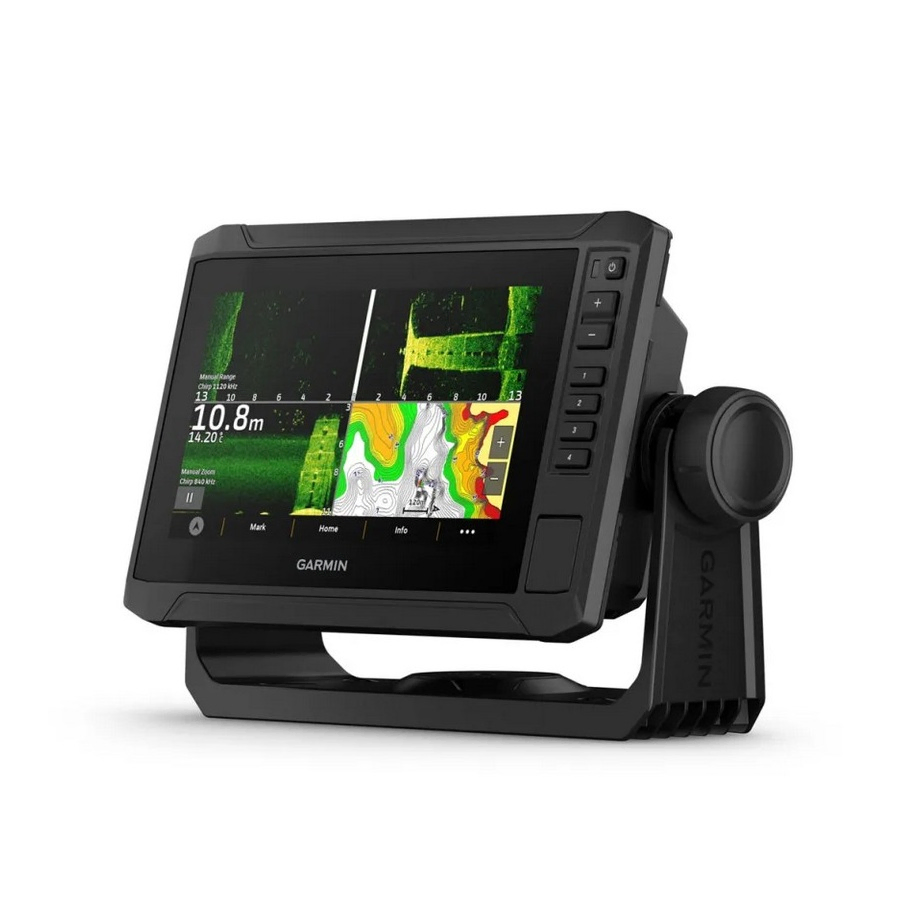

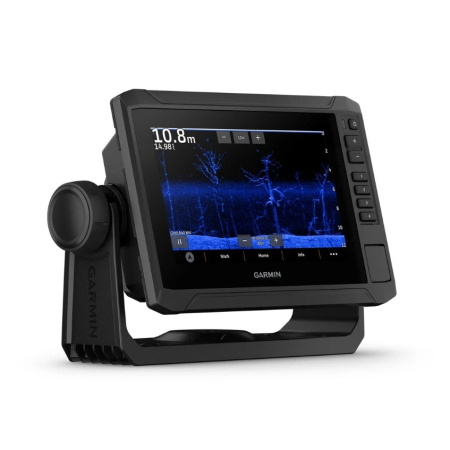

Touchscreen fish finder with built-in Navionics Charts

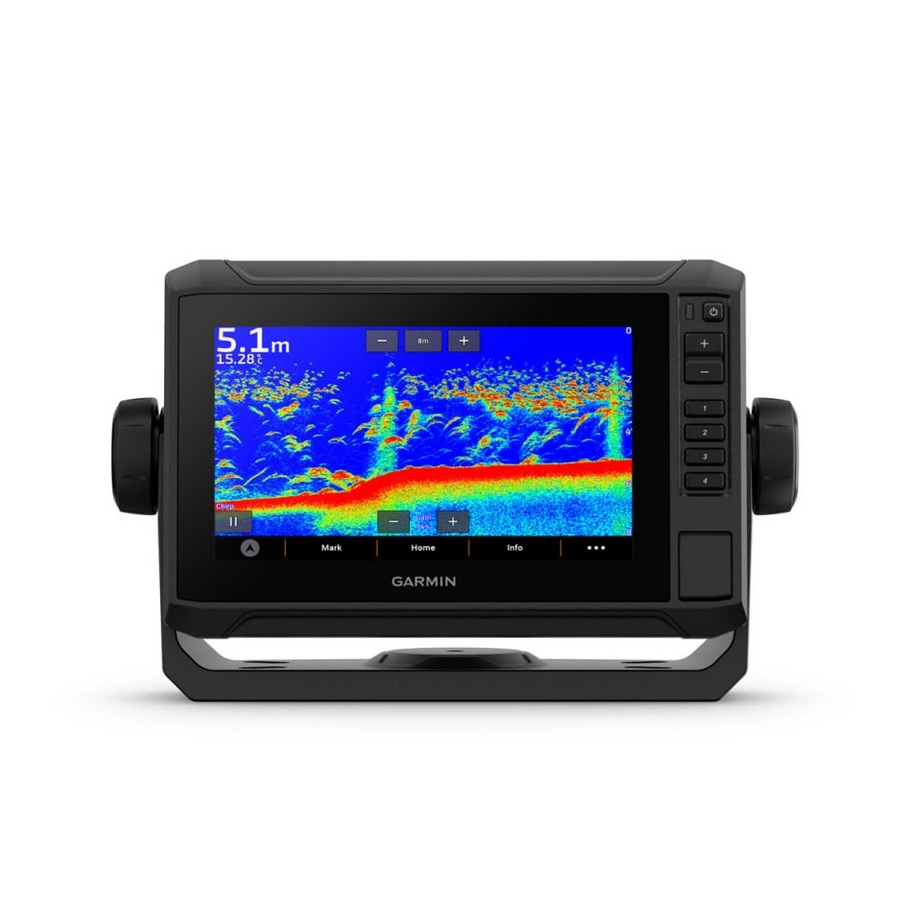

Equip your kayak or boat with a complete system for fish finding, structure-revealing and navigation with an Echomap UHD2 75sv. With a 7in touchscreen display and bright colour palettes, you can clearly see the world beneath your craft in crisp detail. Complete with a full GPS chartplotter for marking your favourite spots, tracking your drifts and following routes to your destination. Offering support for traditional sonar along with ultra-high definition ClearVu down imaging and SideVu side-scan sonar, all provided by the GT56UHD transducer. This provides you with incredible views both beneath and beside your craft so that you can pinpoint those fish and find the best fish holding structures. All displayed on a bright and vivid colour screen with touchscreen control for ease-of-use. The screen also has keyed assist. This fish finder can also run Garmin's LiveScope live-scanning sonar for those who really want to the very best that a fish finder can offer (additional live-scope transducer and sonar module required).
In-built Garmin Navionics+ charts for UK waters provide you with detailed contour charts, allowing you to locate the reefs, pinnacles, drop-off and banks to fish over. Built-in Wifi allows you to connect with the Garmin Active Captain App where you can upgrade your charts to the Navionics Vison+ for super detailed Relief Shading charts!
Connectivity with the ActiveCaptain app allows you to easily update the unit when needed and transfer your sonar and GPS data to the app. The Echomap UHD2 has a IPX7 rating making it great for use on boats and kayaks alike. A top option for those wanting high defintion sonar imaging and a GPS chartplotter with pre-loaded charts.
Side Scan Transducer

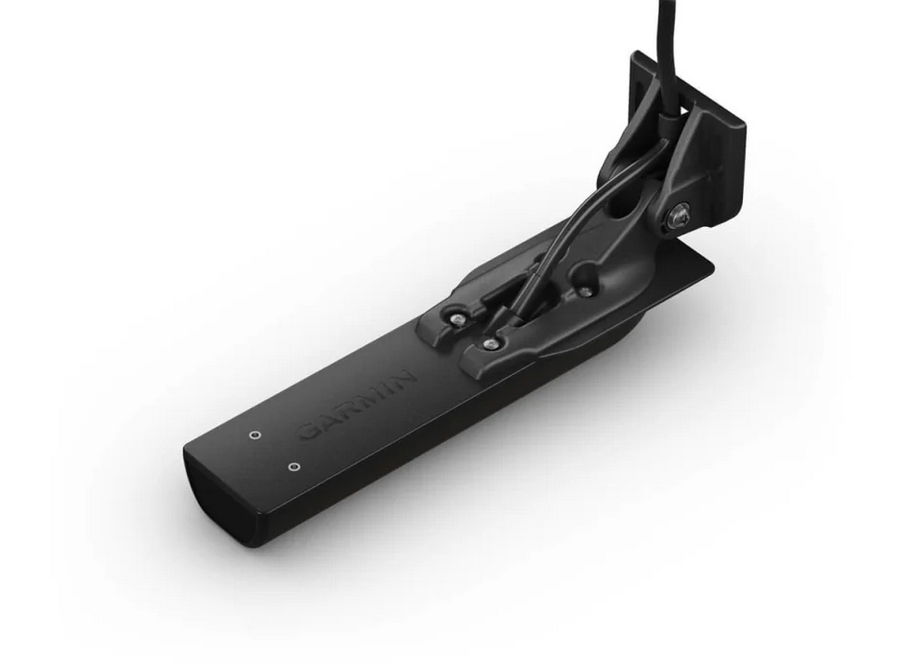

Garmin GT56UHD Transducer
An all-in-one transducer providing traditional high-wide CHIRP sonar (upto 800ft depth) with ultra-high deifintion ClearVu sonar (upto 400ft depth) and SideVu sonar (upto 500ft). Great for coastal and lake use for displaying fish targets and shoals and clear images of structure and underwater objects both below and either side of your craft. Operating frequency of 150-240 kHz (traditional CHIRP) and 455/800/1000 kHz (ClearVü and Sidevü). Can be transom mounted or trolling motor mounted. Transducer Dimensions (without mount): 218.5 mm x 51.8 mm x 27.7 mm
Features
- Bright 7in touchscreen display with keyed assist
- High-contrast vivid colour palette for better viewing of targets on screen
- Preloaded Garmin Navionics+ Charts
- Optional upgrade to Garmin Navionics Vision+ charts via Active Captain App
- Transducer support for Garmin traditional, ClearVU, SideVU and LiveScope sonars
- Built-in Wi-Fi connectivity for Active Captain App
- Wireless Networking with other compatible Echomap UHD2 models
- Downloadable Auto Guidance+ technology with the ActiveCaptain app
- Force Trolling Motor and Power-Pole Shallow Water Anchor Control
- Multi-band GPS for improved position accuracy
- IPX7 waterproof rating
- Micro SD card slot - accepts data cards up to 32 GB maximum size
- Typical Current Draw at 12VDC = 1.53A
- Max Current Draw at 12VDC = 3.2A
What's Included
- ECHOMAP UHD2 75sv
- 12-pin sounder to 8-pin transducer cable
- Power cable
- Tilt/swivel mount with quick release cradle
- Protective cover
- Hardware
- Documentation
- GT56 UHD Transducer (if purchased with the fish finder)
